ONE AND A HALF & DOUBLE CABIN PICK-UPS

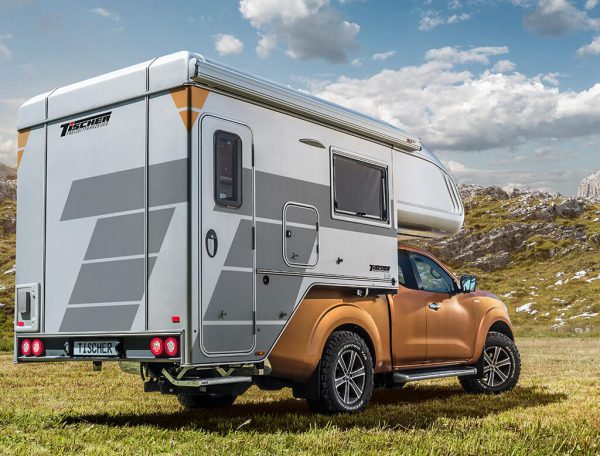

Trail/Box 260/260S

No wish remains unfilled: Our 260 model with rear entrance or 260S with side entrance offer the optimum in spacious comfort for up to four occupants.

Flexible travel with the Trail/Box 260/260S

The living area offers enough space for relaxing, down-time, sleeping and for joint activities. Galley, four comfortable seating spaces, large beds, 1.95 m standing height, generous storage space and a washroom with large, fold-down wash basin provide an abundance of comfort.

Modern engineering, generous padding, a 45 litre underfloor waste water tank and lots of further details round off the extensive equipment. The Trail/Box 260/260S also displays a further special feature: It fits onto both pick-ups with one-and-a-half cabin driver’s cab and the VW Amarok XL with double cabin and extended truck bed.

Technical Data
Total width* 210 cm
Total length* 608 cm
Total height* 299 cm
Standing height 195 cm
Platform length 429 cm
Floor length inside 264 cm
Bed dimensions alcoves 198 x 150 cm
Bed dimensions seating group 198 x 113/120 cm

*ca.-Angabe – abhängig von Basisfahrzeug und Ausstattung

Suitable basic vehicles

– Ford
– Isuzu
– Toyota
– Nissan
– VW Amarok Double Cap XL

More Details

With everything that is needed for adventures

EQUIPEMENT AND INTERIOR

Trail/Box 260/260S

CABIN STRUCTURE

  • Modern sandwich construction technique with accessible roof
  • 30 mm solid foam insulation
  • 3 mm poplar plywood interior panelling
  • Stove-enamelled, smooth aluminium outer membrane with design options in a variety of colours
  • Anti-thermal-bridge “SEITZ” double-glazed windows incl. mosquito net and blackout blind
  • Double-shell roof cover incl. mosquito net and blackout
  • Entrance door with safety lock, window incl. mosquito blind and dustbin
  • Crank supports with plastic washers
TISCHER Kabine TRAIL BOX 260 260S

spacious and comfortable

LIVING AREA

  • Decorative coating of the interior walls and PVC floor covering
  • Furniture in light poplar plywood with modern, easy-care coating
  • Kitchen furniture and table with hardwearing surface
  • Central seating group in 8 cm thick high quality foam upholstery, convertible to a bed
  • Lengthwise version available as an optional extra
  • Covers with modern design, zippers for removal
  • Curtains on the living area windows (various versions possible)
  • Winter backrests
  • Forced ventilation on all storage cabinets

Practically equipped

KITCHEN

  • Safety pilot equipped 3-flame gas cooker with electrical ignition and “Nirosta” sink with split glass cover plate
  • Refrigerator “Dometic RM 8401” 90 l with freezer compartment (12 V / 230 V gas powered)

Cleverly designed

BATHROOM

  • Swivel toilet C 403 L from market leader Thetford is of high quality and user-friendly
  • Fold-away washbasin provides space for showering
  • Wall cabinets offer sufficient storage space
  • Sliding door in high-quality plastic is water resistant and permits free access to the cabin

Safe & functional

TECHNIQUE

Gas-, Water-, Heating system
  • Storage space for two 5 kg gas bottles, with access from outside
  • Gas heating “TRUMA Combi 4E” with safety gas pressure controller “TRUMA Mono Control CS” for operation while vehicle is in motion
  • Shut-off valves for each individual appliance
  • Fresh water supply with 96 litre tank and pressure pump
  • 45 litre waste water tank as underfloor tank
12-V / 230-V-system
  • Energy-saving 12 Volt LED lighting in living area
  • 12 and 230 Volt socket
  • CEE input socket with 10 A automatic fuse
  • AGM battery, 12 V 92 Ah with disconnection relay, with automatic charger and additional battery booster
  • Shut-off relay for 12 Volt refrigerator function

modern & classically attractive

FABRICS

With modern fabrics, fashionable trend colours and lots of extras for individually designing the interior of our demountable cabin, we ensure that you feel at home. Our upholstery and curtain fabrics are available in a choice of five different versions.

For even more individuality and personality, we offer our curtains in classic sewing styles with gathering tape as conventional curtains and drapes or in modern form as flat blinds and roman blinds.

You make the choice, we make your wishes come true.

Link: Latest range of fabrics as PDF

flexible & extensive

OPTIONALE ACCESSORIES

There are lots of reasons for choosing the most flexible way to travel: be it a modern interior for greater self-fulfilment, a powerful basic vehicle or the option of taking a boat, horse or motorbike along on the trip.

We are delighted to show you the possibilities of a TISCHER cabin. In addition, you will find useful information on all suitable basic vehicles, see just how flexible you can be when it comes to taking a trailer along, and just how easy it is to mount and demount the cabin by hand, in the form of a product film.

Let yourself be inspired by the diversity of interior design options in our interior worlds. Our current fabric collections and trend colours add new zest to travelling.
